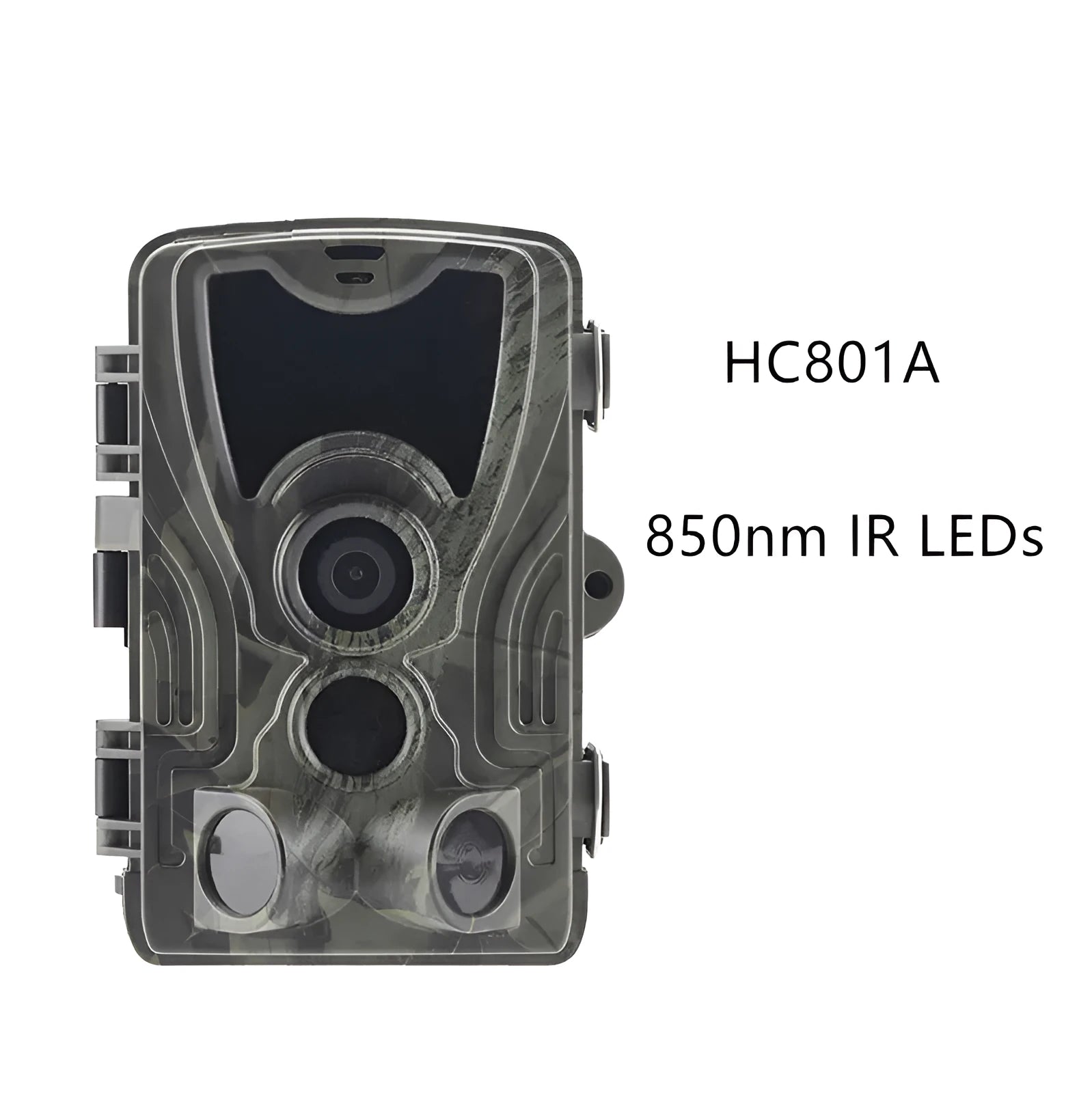

HC801A Hunting Camera with 20m Infrared Flash and 0.6s Trigger Time

The HC801A hunting camera is built for outdoor monitoring, whether you are tracking wildlife, securing a property, or observing remote land. With a 0.6-second trigger time and 20-metre infrared flash range, it captures movement day or night. The 108-degree lens and 60-degree PIR detection angle help cover a wide area, while IP65-rated water splash protection means it can stay out in the elements. This camera uses a 5MP/8MP/16MP CMOS sensor and supports multiple photo and video resolutions, making it a versatile tool for field use.

Features and Construction

The HC801A is built around reliable components and straightforward controls. It offers programmable settings for trigger interval, video length, and periodic capture, giving you control over how and when you record.

Image and Video Quality

You can select photo resolutions from 1MP up to 16MP, with options like 12MP (4000x3000) and 8MP (3264x2448). Video is recorded in AVI format at up to 1080p (1440x1080 at 25fps) or lower resolutions such as 1280x720 at 30fps. The camera automatically takes colour images during the day and switches to black-and-white at night using infrared illumination.

Detection and Trigger

The PIR sensor detects movement within a 60-degree angle, with an optional 120-degree preparation angle that can be turned on or off. You can set the trigger interval from 0 seconds to 60 minutes. The 0.6-second trigger time ensures you do not miss fast-moving subjects, and a pre-start of 0.2 seconds helps capture the moment before full trigger activation.

Infrared and Night Performance

Thirty-six infrared lights provide a flash range of up to 20 metres at night. The camera also includes an automatic infrared filter switch. Night imaging is effective from 3 to 25 metres, while daytime coverage extends from 1 metre to infinity.

Uses and Placement

The HC801A suits a variety of outdoor settings where reliable image capture is needed, from game scouting to general security monitoring.

Wildlife and Hunting

Set it up near trails, feeding areas, or water sources to monitor animal activity. The time stamp feature can display serial number, temperature, and moon phase, which is useful for logging patterns. The camera can be programmed to take a still photo followed by a video clip, giving you both a snapshot and motion footage.

Property and Perimeter Monitoring

Mount the camera to overlook driveways, gates, or other sensitive points. With adjustable PIR sensitivity (high, normal, low) and time interval settings, you can reduce false triggers from swaying vegetation or small animals. The password protection (4-digit) helps keep your settings secure.

Remote Observation

For long-term placement, the HC801A can be set to periodic capture with intervals from 5 seconds to 24 hours. Standby time is around 8 months, and battery life is rated at up to 30,000 daytime photos or 12,000 nighttime photos (based on standard conditions).

Practical Benefits and Value

The camera is designed for extended outdoor use with minimal maintenance, supported by solid construction and energy-efficient operation.

Durability and Weather Resistance

With IP65-rated water splash protection, the camera can withstand rain and moisture in normal outdoor conditions. It operates reliably in temperatures from -20°C to +60°C, making it suitable for varied climates.

Battery and Storage Efficiency

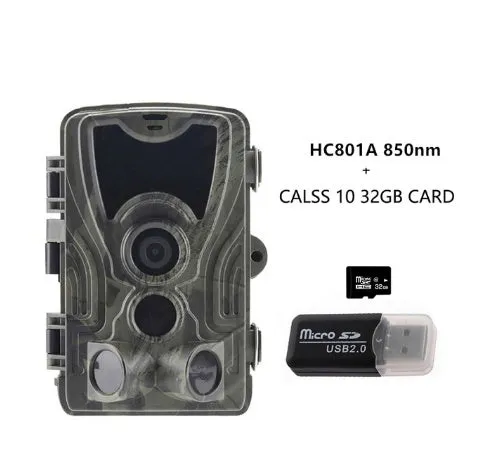

It uses 4 to 8 AA batteries (not included) and can be expanded to an external 6V power supply if needed. Storage is handled via a TF card (up to 32 GB), and the camera auto-powers off after 2 minutes without keyboard activity to save power.

Why Choose the HC801A

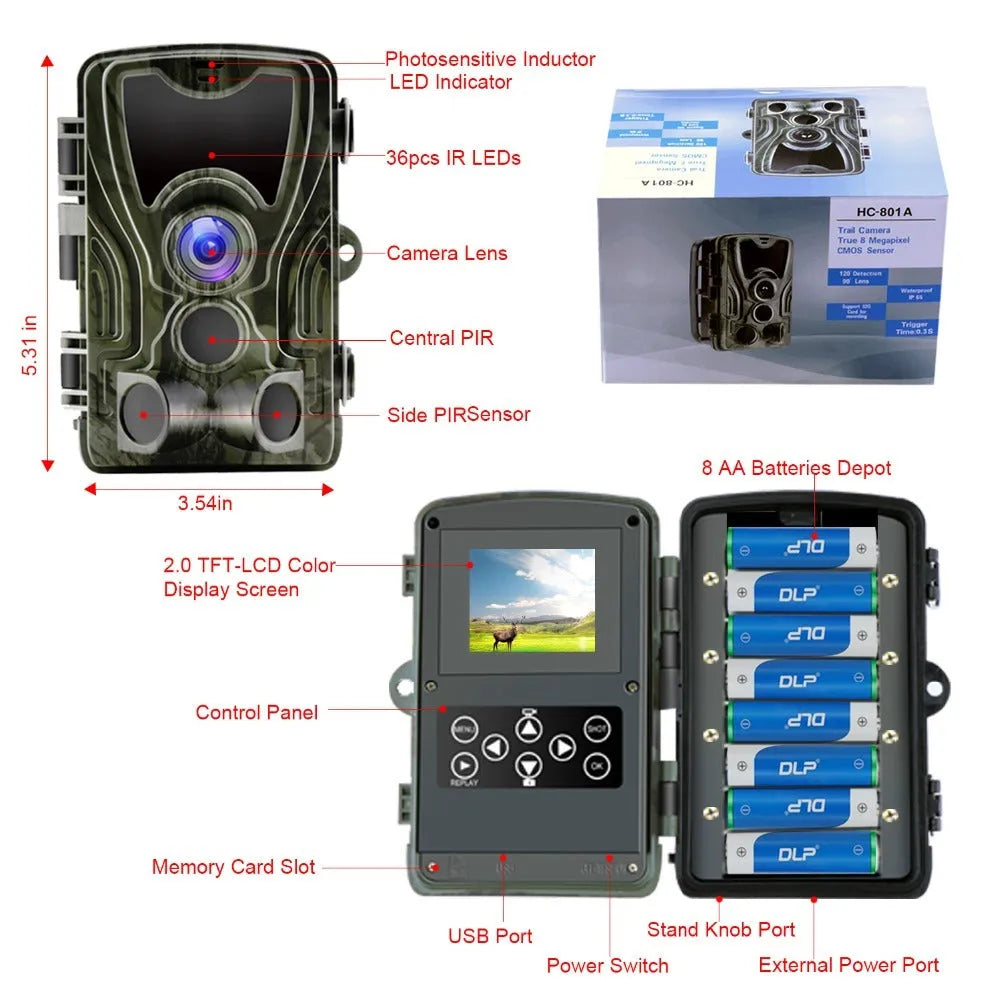

This camera offers a strong balance of detection speed (0.6s trigger), night range (20m IR), and programmable flexibility. Its 2.4-inch LCD screen allows easy setup and review in the field, and the combination of photo and video modes gives you comprehensive evidence of activity. For anyone needing a dependable outdoor camera for monitoring or wildlife observation, the HC801A delivers the essential features without unnecessary complexity.
