35mm Hinge Punch Locator Tool with Adjustable Margin for Cabinet and Wardrobe Door Installation

Installing cabinet and wardrobe door hinges accurately is a fundamental step in woodworking and home DIY that demands precision to ensure doors hang correctly and function smoothly. This hinge locating rule is designed specifically to address that need, providing a physical guide for marking and drilling holes for 35mm extended arm or middle bend hinges. By incorporating adjustable margin settings, it offers flexibility for different installation requirements, moving beyond a one-size-fits-all approach. The tool's construction from aluminium alloy and inclusion of a specialised hard alloy blade tapper focus on practical durability and performance for the task at hand, making it a focused addition to a household toolkit for cabinetry projects.

Features and Construction

The core design of this tool centres on providing a reliable, repeatable method for hinge placement. Its features are derived directly from the needs of hinge installation, avoiding unnecessary complexity. The construction materials are chosen for their suitability to the tool's function, balancing sturdiness with ease of handling during use.

Material and Build

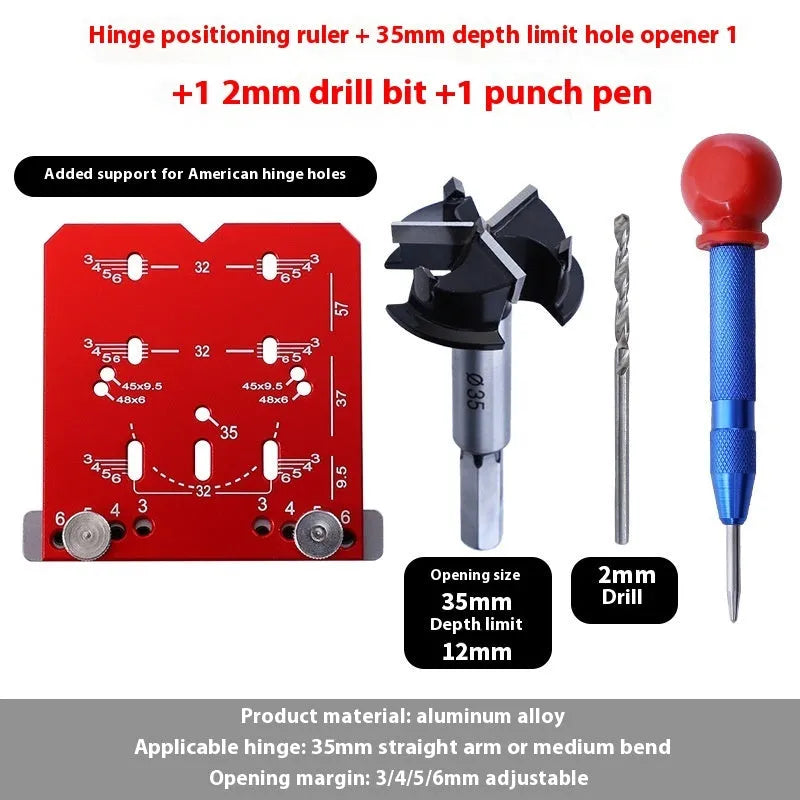

The main body of the hinge locator is crafted from aluminium alloy. This material provides a solid frame that is resistant to bending under normal use while remaining lightweight enough for comfortable handling during extended marking sessions. The integrated component is a limit tapper made from hard alloy. This blade's cutting edge has undergone a high-temperature heat treatment process, a detail that contributes to its stated properties of high hardness, sharpness, and wear resistance, which are crucial for creating clean pilot marks in wood.

Size and Practical Fit

This tool is engineered for a specific application: installing 35mm extended arm or middle bend hinges, which are common in cabinet and wardrobe door furniture. Its key functional feature is the adjustable opening margin, which can be set to 3mm, 4mm, 5mm, or 6mm. This adjustability allows users to tailor the hinge's inset according to the door thickness or personal preference, providing a versatile solution within a defined range. The design facilitates accurate positioning, aiming to simplify an operation that typically requires careful measurement and marking.

Uses and Placement

The primary use case for this tool is clearly defined, focusing on a common home improvement task. Its value lies in bringing consistency and ease to a process that can otherwise be prone to error, particularly for those undertaking DIY projects without professional jigs or templates.

Event or Professional Use

While suited for household use, the tool's design based on specific hinge sizes and its adjustable, repeatable marking system could support smaller-scale professional woodworking or furniture assembly tasks where speed and consistency in hinge fitting are beneficial. The hard alloy blade is intended to maintain its edge through multiple uses on various wood types, supporting its application in scenarios requiring the installation of several identical hinges.

Everyday Home Use

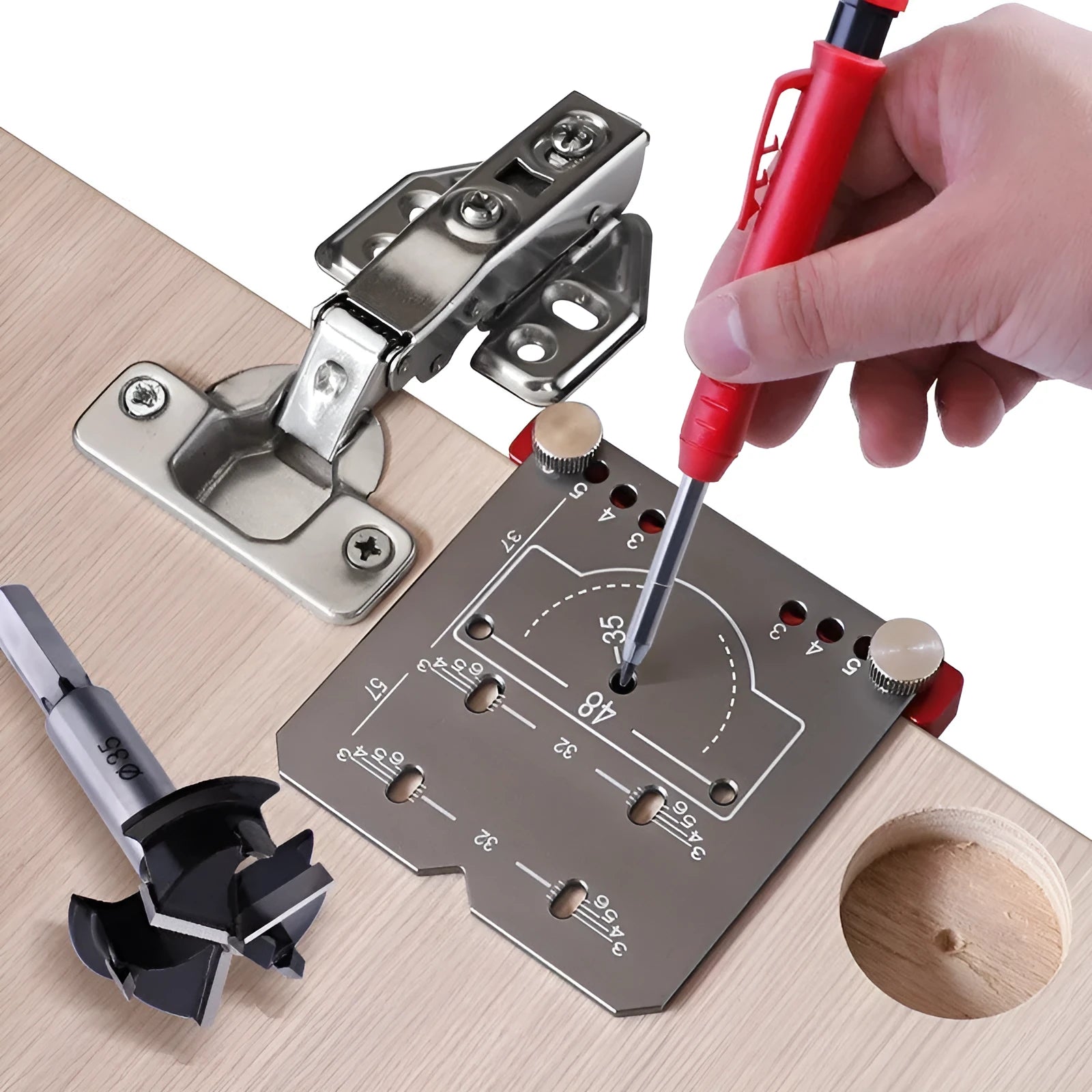

For the DIY enthusiast or homeowner, this hinge locator directly addresses the challenge of installing or replacing hinges on kitchen cabinets, wardrobe doors, or other built-in furniture. It removes the guesswork from determining the correct setback from the door edge and the precise drilling points for the hinge cup. This can lead to a more professional-looking result, with doors that open smoothly and align correctly with the cabinet frame, enhancing the functionality and appearance of household storage solutions.

Benefits and Buying Value

The value of this product is rooted in its specific function and the practical problems it solves. It is a single-purpose tool that aims to perform its task effectively, reducing the potential for mistakes and the time spent on manual layout.

Reuse and Low Maintenance

As a solidly constructed tool from aluminium alloy with a wear-resistant hard alloy blade, it is built for reuse across multiple projects. Its low-maintenance design requires no calibration or complex setup; the user simply selects the desired margin and uses the guide. This reusability offers long-term value, as it can be stored in a toolbox and brought out for any future cabinet fitting or adjustment work, making it a practical investment for ongoing home maintenance.

Why Choose This Product

Choosing this hinge punch locator comes down to a need for accuracy and efficiency in a specific woodworking task. It provides a tangible advantage over using a ruler, square, and pencil alone by combining measurement and physical guidance into one tool. The adjustable margin feature adds a layer of customisation that generic marking tools lack. For anyone regularly working with 35mm hinges, this tool offers a straightforward way to achieve consistent, reliable results, which is the core practical benefit it delivers.
