Owon HDS272 70 MHz Handheld Digital Oscilloscope for Automotive Electrical Diagnostics

For automotive technicians, electrical engineers, and field service personnel requiring accurate waveform measurement outside traditional workshop environments, this handheld digital oscilloscope provides laboratory-grade diagnostic capability in portable format. With 70 MHz bandwidth and 250 MSa/s sampling rate, it captures engine sensor signals, ignition waveforms, and communication bus activity during vehicle testing procedures. The compact 198x96x38 mm design fits comfortably in one hand while accessing confined engine bay spaces, supported by a complete accessory kit including specialised automotive probes, multimeter functions, and protective carrying case. This configuration addresses the practical challenge of performing detailed electrical diagnostics where vehicles cannot be moved to stationary test equipment.

Features and Construction

The Owon HDS272 oscilloscope combines measurement performance with physical portability for automotive and industrial electrical testing scenarios. At 70 MHz bandwidth, it captures most engine management signals, sensor outputs, and medium-speed digital communications found in modern vehicles.

Material and Build

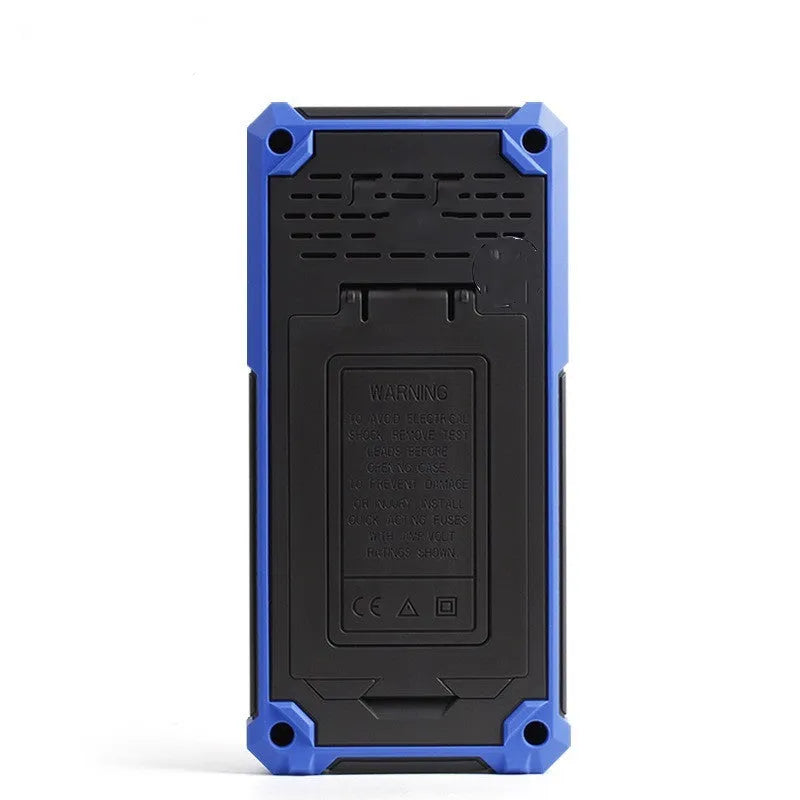

Constructed with impact-resistant housing materials combining plastic and metal components, the oscilloscope withstands typical workshop handling while maintaining measurement accuracy. The digital display provides clear waveform visualisation under various lighting conditions, with interface controls designed for operation while wearing work gloves. Probe cables feature durable BNC connectors that maintain secure connections during vibration-prone testing environments.

Size and Practical Fit

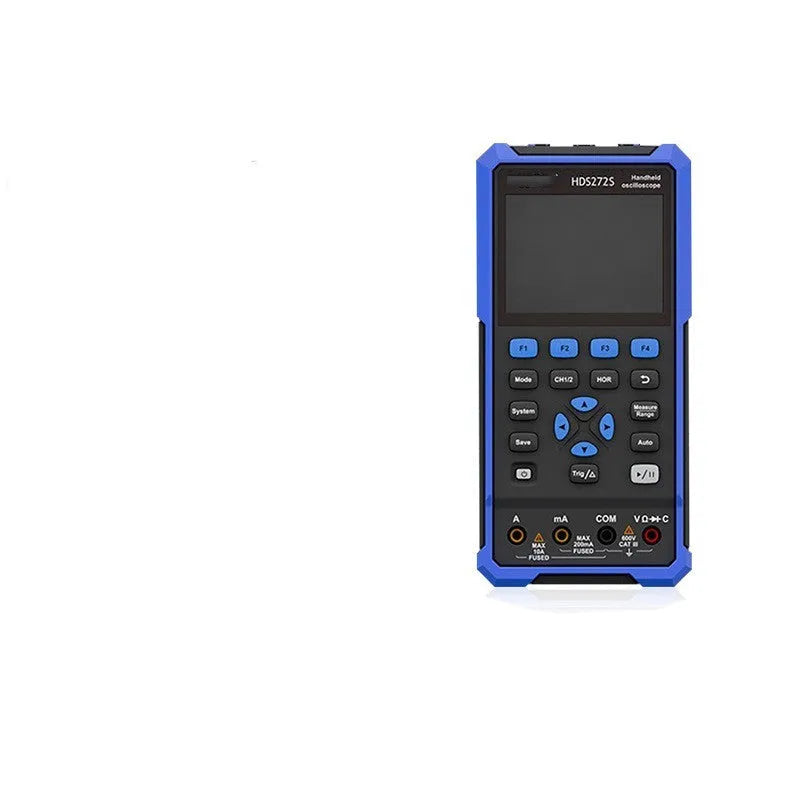

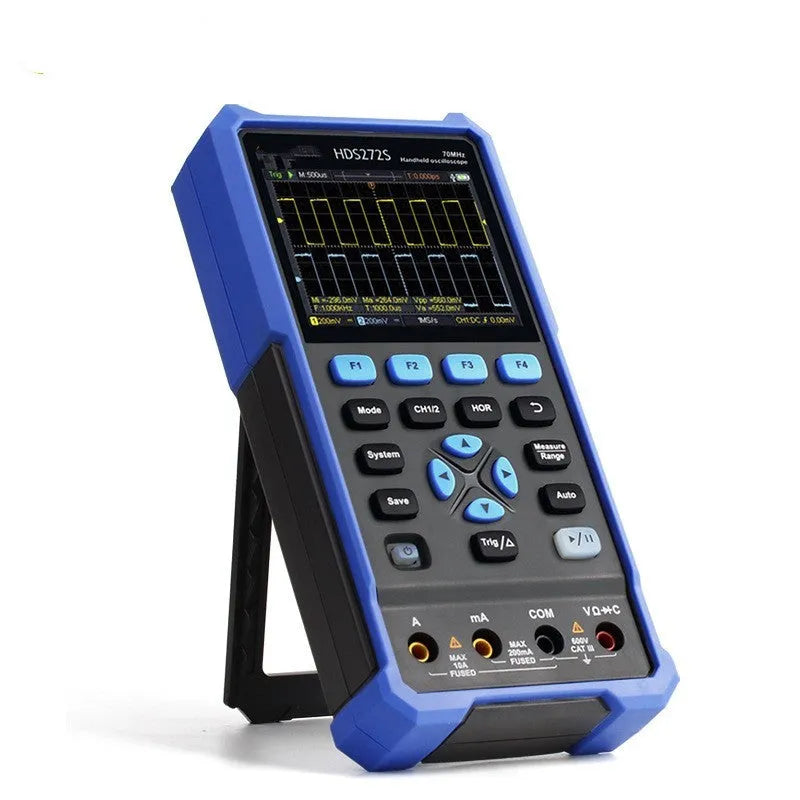

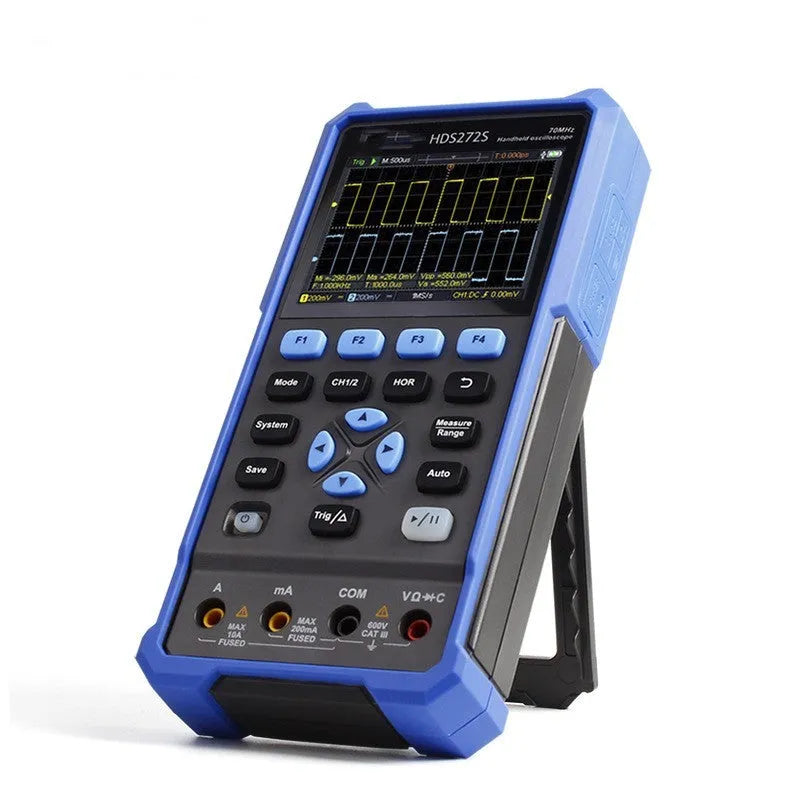

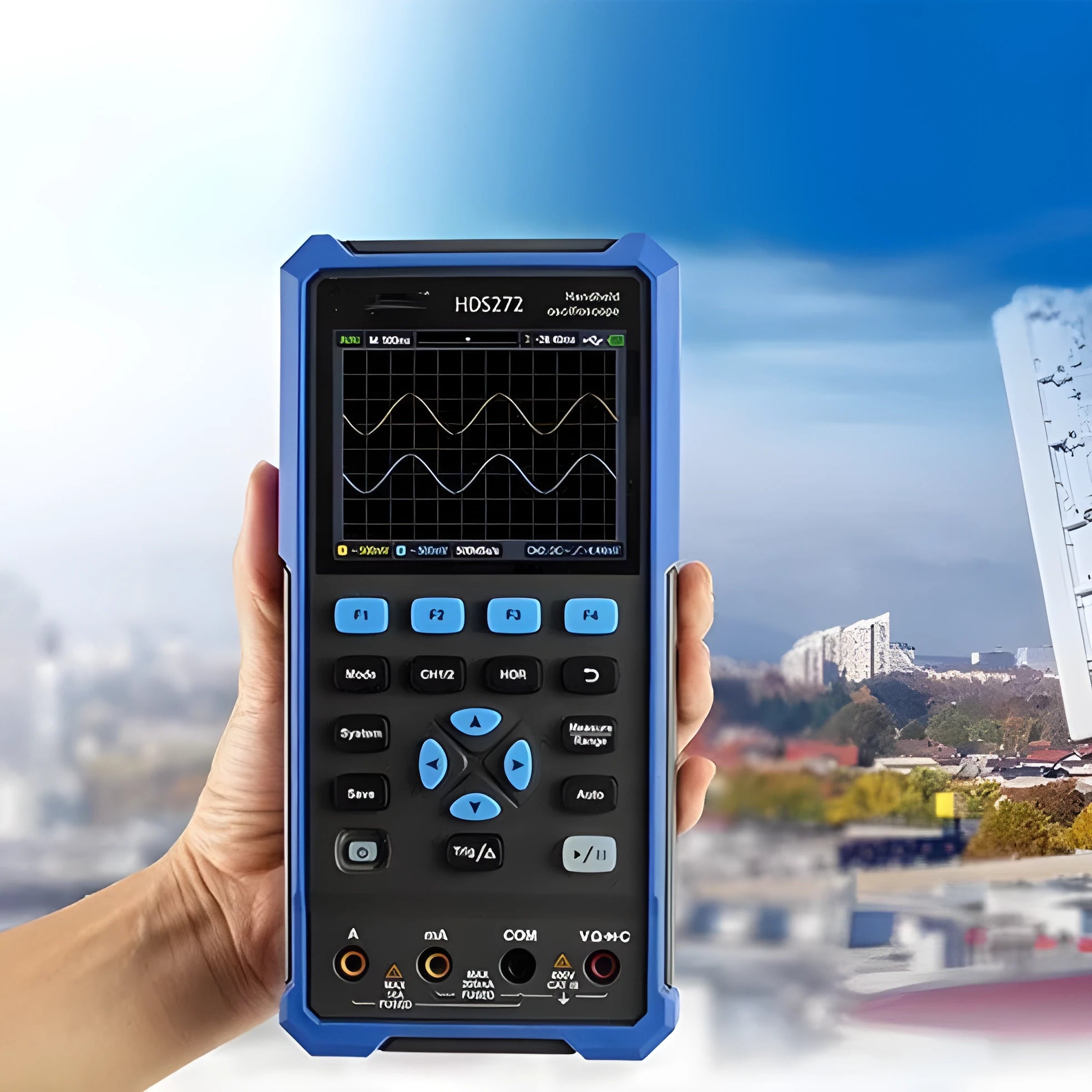

Measuring 198 mm in length, 96 mm in height, and 38 mm in depth, the oscilloscope fits comfortably in one hand while leaving the other free for probe placement and vehicle access. This compact form factor allows technicians to reach measurement points behind dashboards, within engine compartments, and alongside vehicle frames without requiring extended cables that can introduce measurement errors. The included carrying bag provides padded protection during transport between workshop bays or mobile service calls.

Uses and Placement

This handheld oscilloscope serves multiple diagnostic roles in automotive repair, electrical installation testing, and industrial maintenance where portability complements measurement requirements.

Event or Professional Use

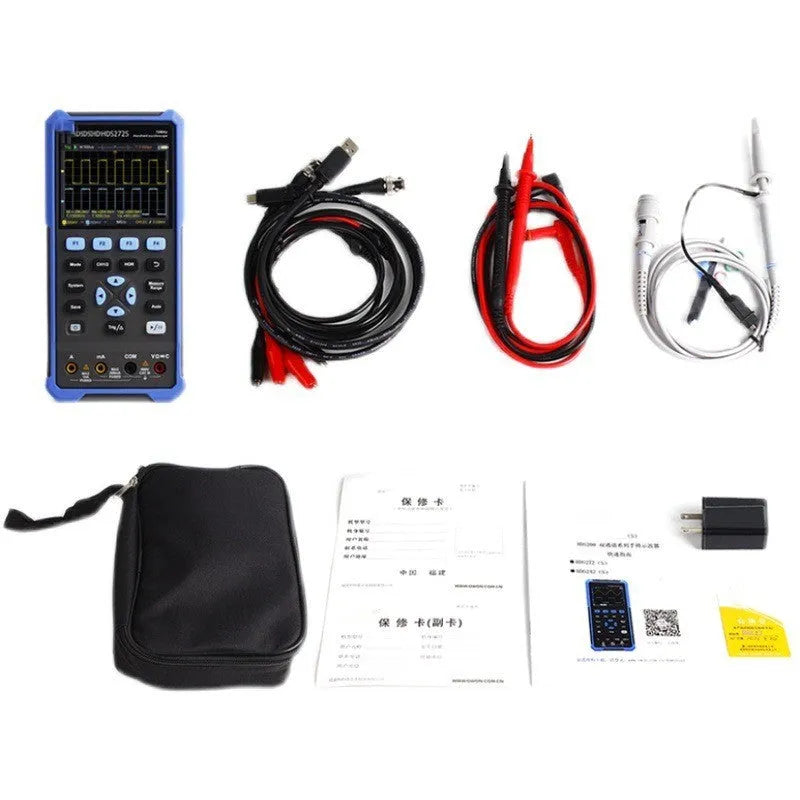

For professional automotive technicians, the 10000 wfms/s waveform capture rate reveals intermittent faults in crankshaft position sensors, camshaft sensors, oxygen sensors, and ignition systems that might be missed by slower sampling instruments. The complete accessory kit includes BNC-to-crocodile clip adapters for connecting to vehicle wiring without specialised connectors, while the multimeter pen provides additional voltage and continuity checking capability alongside waveform analysis.

Everyday Home Use

For advanced DIY automotive enthusiasts and home workshop users, the portable format allows electrical diagnostics on project cars, motorcycles, and marine engines where space constraints prevent using bench-top equipment. The USB connectivity enables waveform saving and analysis on computer software, while the comprehensive manual provides guidance on interpreting common automotive signals for troubleshooting ignition timing, fuel injection pulses, and sensor calibration issues.

Benefits and Buying Value

The Owon HDS272 configuration delivers measurement functionality typically found in larger instruments while maintaining workshop mobility and accessory completeness.

Reuse and Low Maintenance

Included calibration tools and correction pens allow periodic verification of measurement accuracy without returning the instrument to service centres. The protective carrying bag minimises transit damage during regular use between different workshop locations or service vehicles. USB connectivity reduces dependency on proprietary cables for software updates and data transfer.

Why Choose This Product

This oscilloscope provides a balanced combination of 70 MHz bandwidth for adequate automotive signal capture and handheld portability for confined-space diagnostics. The complete accessory kit eliminates additional purchases for basic automotive testing scenarios, while the 250 MSa/s sampling rate delivers sufficient detail for most engine management and electrical system troubleshooting tasks outside specialised laboratory environments.
