CONTEC TLC6000 12-Lead Holter Monitor for 24-Hour ECG Recording with PC Software

This dynamic ECG system is designed for continuous cardiac monitoring over a full 24-hour period, capturing and analysing ECG waveforms using a standard 12-lead international system. It serves medical institutions and community healthcare settings, providing physicians with detailed data to support diagnosis of arrhythmias, atrial fibrillation, pacemaker function, and other cardiac conditions. The device records continuously and offers sync analysis across all leads, ensuring accurate QRS detection without distortion. Powered by a single AAA alkaline battery, it is portable and easy to use in ambulatory settings, with data transfer via USB2.0 for comprehensive PC-based analysis.

Features and Analysis Capabilities

This monitor includes a range of analysis functions that help physicians interpret ECG data more accurately and efficiently. The software offers templates and modules for detecting various pathologic waveforms, and supports both automated and manual analysis modes.

12-Lead Sync Analysis

The system employs a standard 12-lead configuration and performs sync analysis across all leads. Any channel can be selected as the main analysis channel, ensuring that QRS waveforms are found accurately without distortion. This flexibility supports reliable detection of cardiac events.

Pathologic Waveform Detection

With more than 10 templates including atrial premature beat, ventricular premature beat, long interval, and atrial fibrillation, the software can distinguish almost any kind of pathologic waveform. User-defined modules further extend detection capabilities, providing physicians with thorough analysis options.

Pacemaker and HRT Analysis

The device analyses all pacemaker types such as AAI, VVI, and DDD. Additionally, the HRT analysis function helps predict death risk in patients with myocardial infarction, offering valuable prognostic data for clinical decision-making.

Technical Specifications and Performance

The CONTEC TLC6000 meets performance standards suitable for clinical use, with specifications that ensure reliable recording and data integrity over the 24-hour monitoring period.

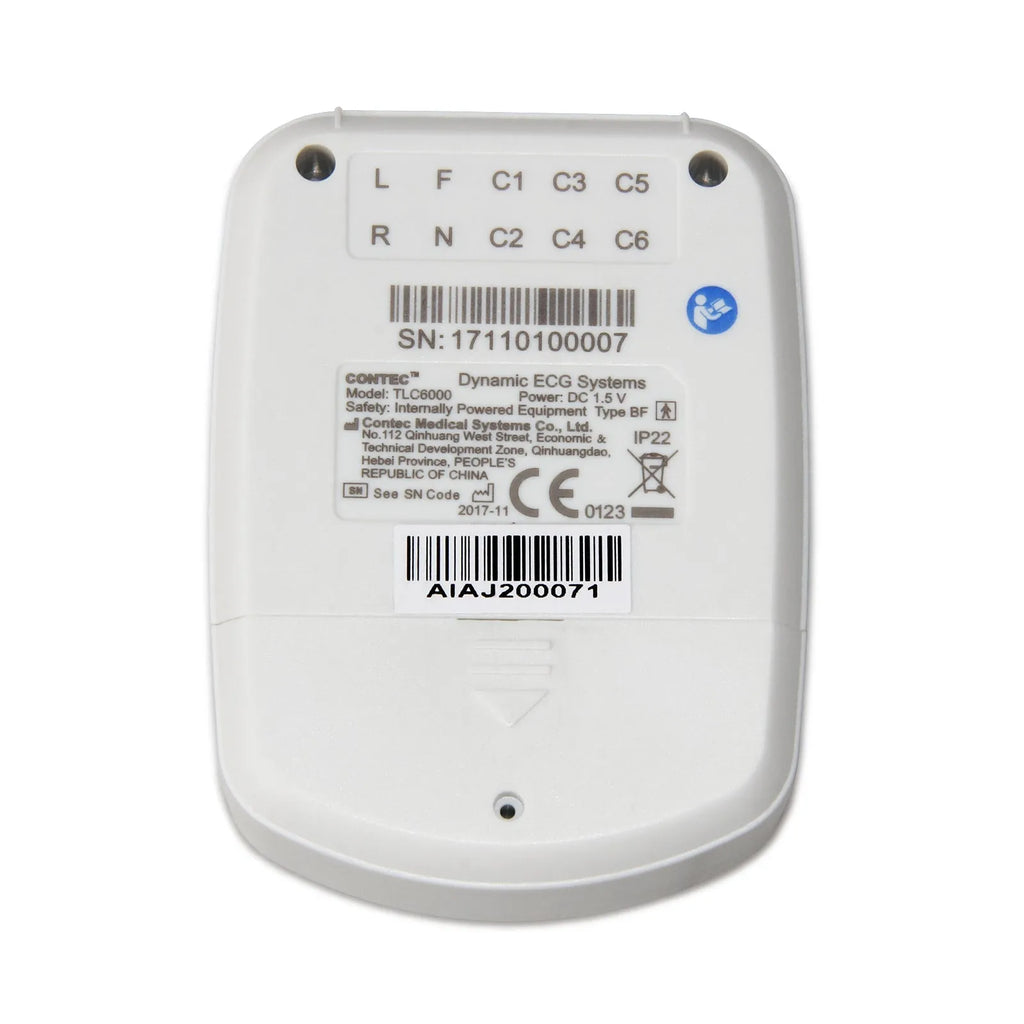

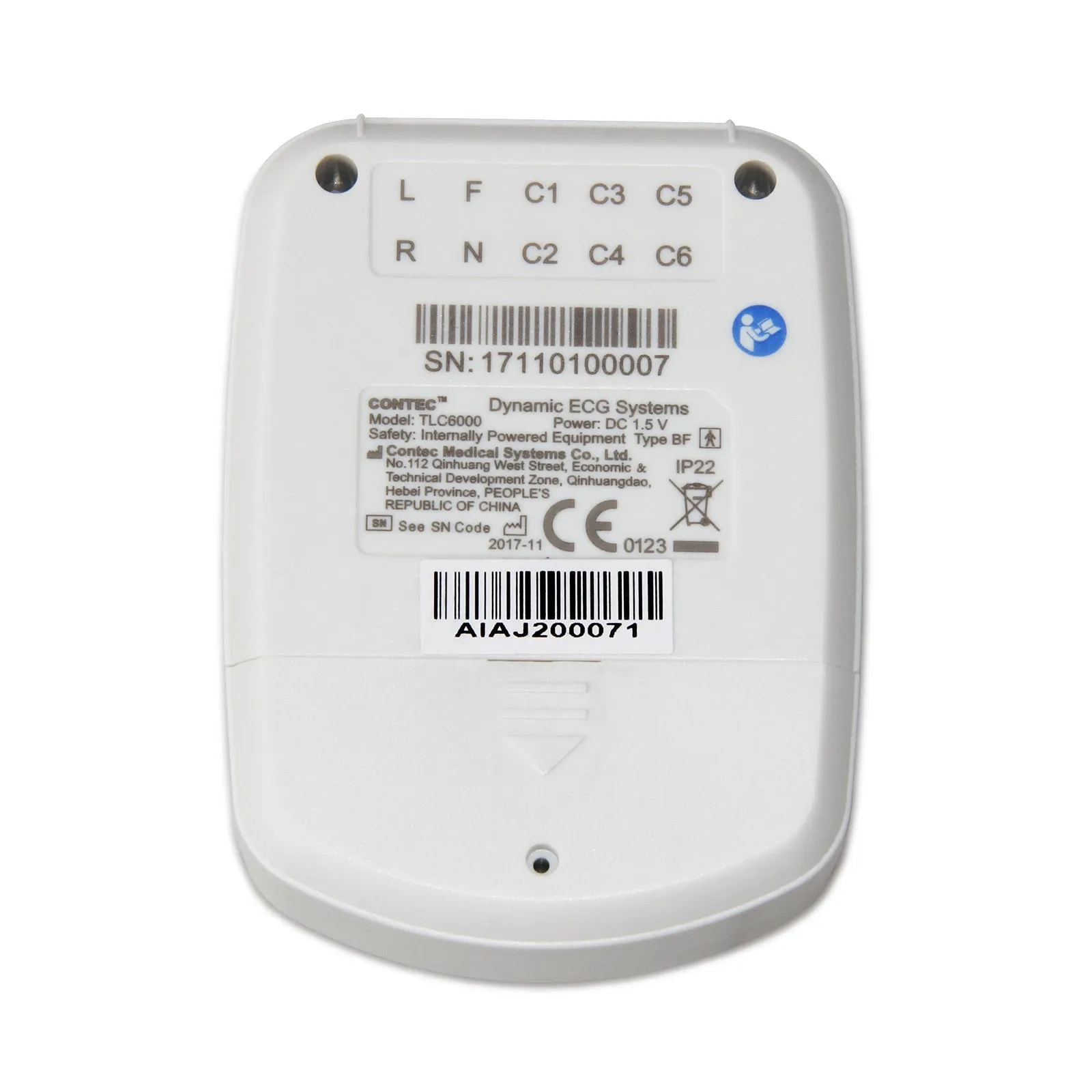

Lead System and Power Supply

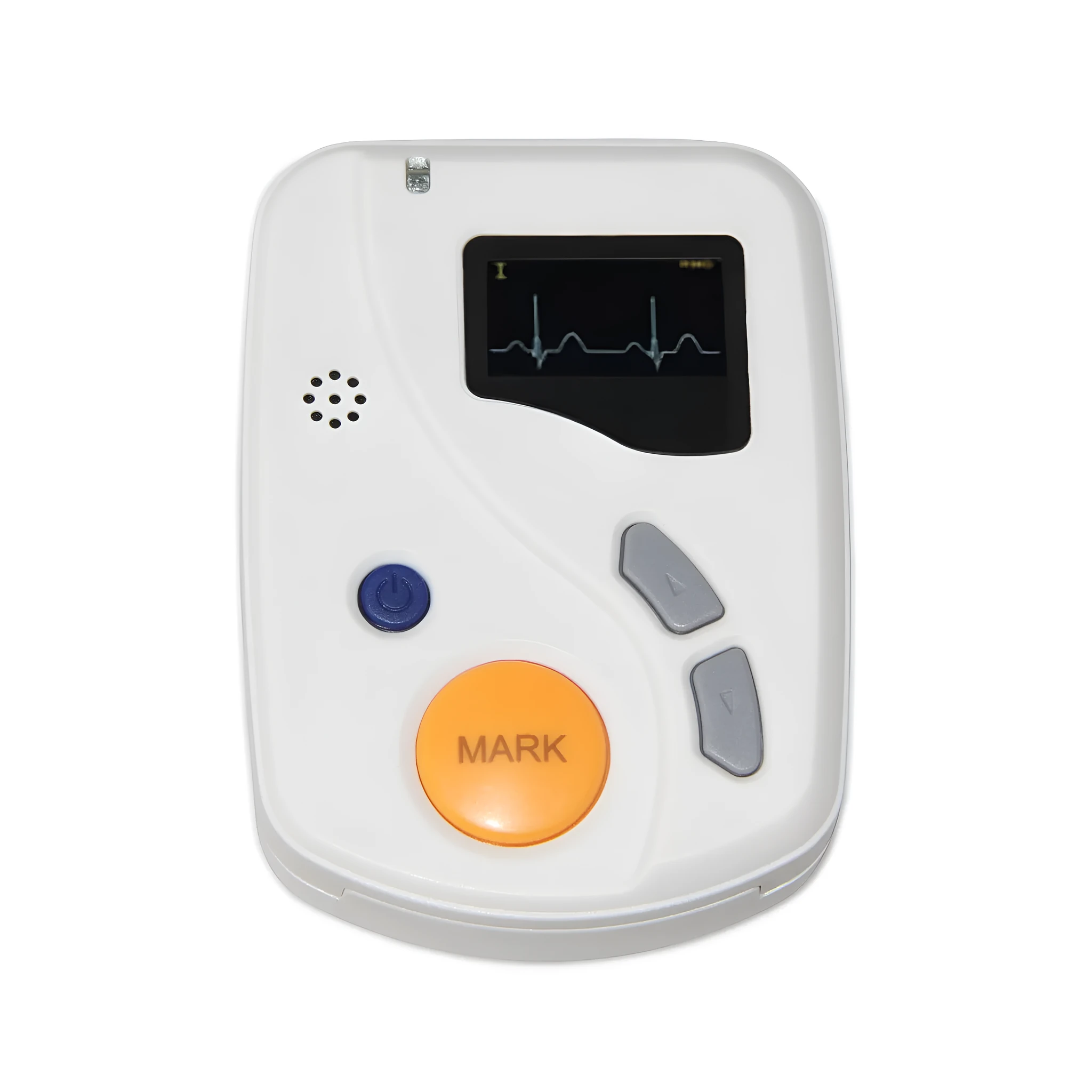

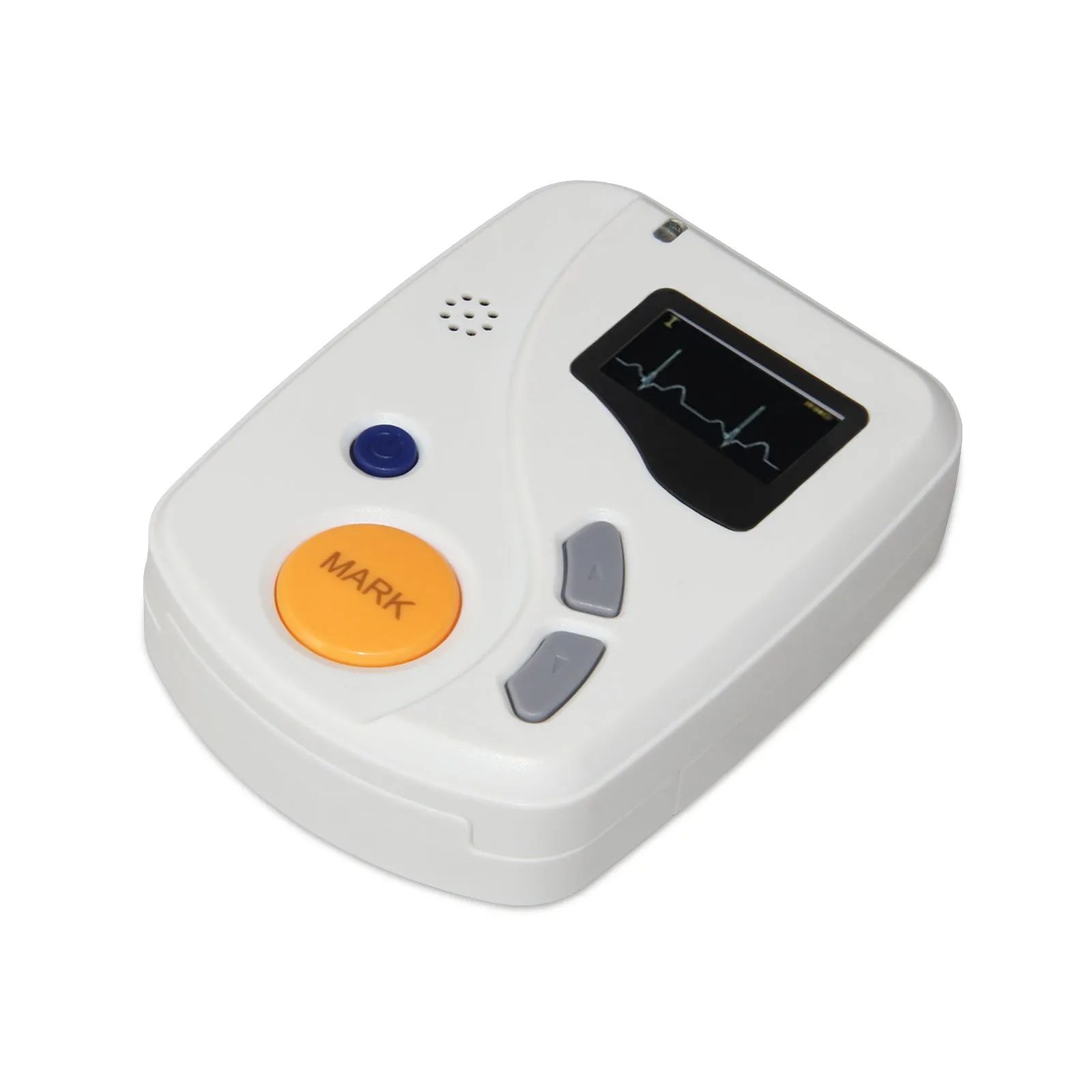

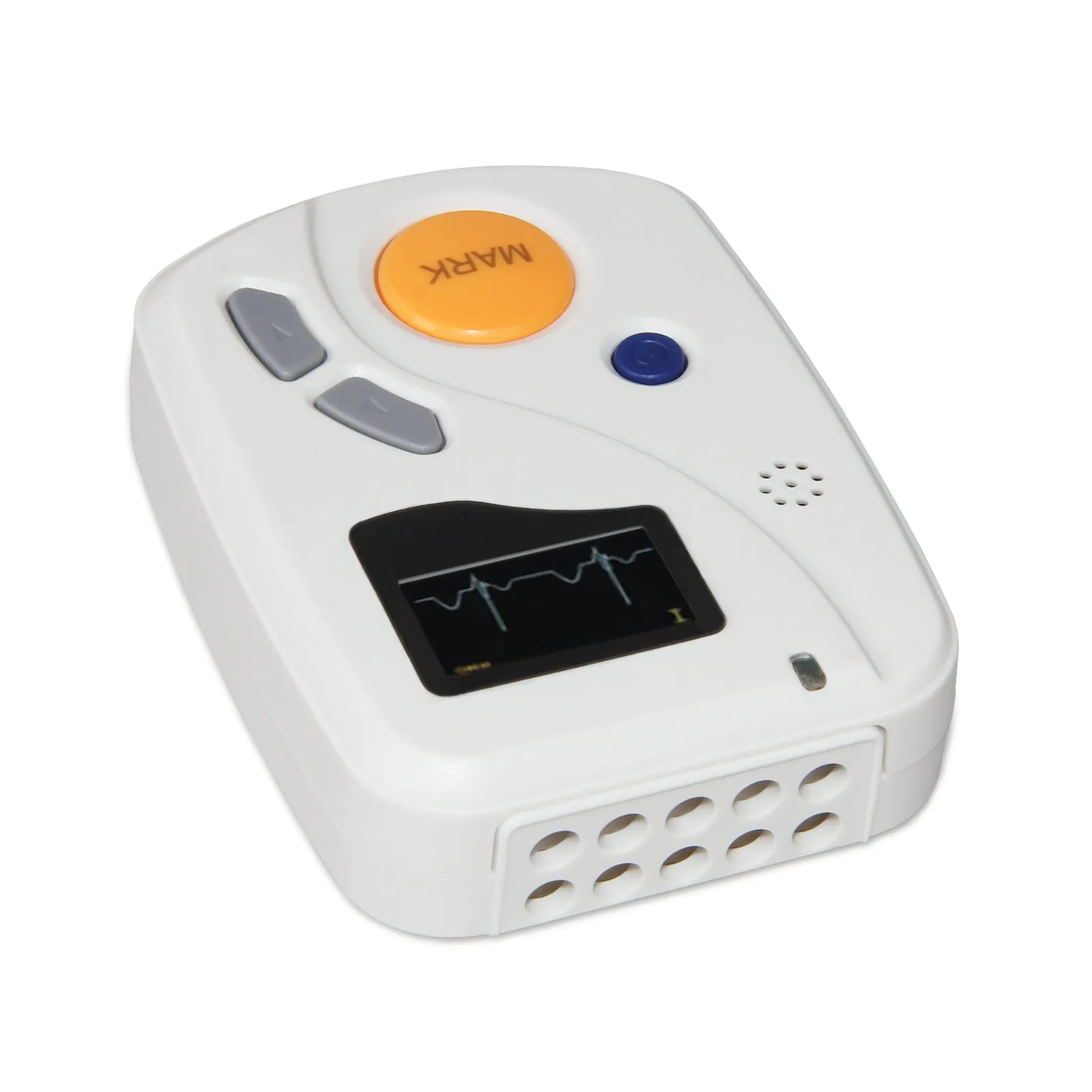

The monitor uses a standard 12-lead configuration and is powered by a single AAA alkaline battery. Its compact size (81mm×60mm×22mm) and light weight (approximately 61.5g without batteries) make it convenient for ambulatory use.

Data Transfer and Connectivity

Data is transferred to a PC via USB2.0 interface, enabling fast and reliable communication with the analysis software. The included USB cable and software facilitate straightforward setup and report generation.

Measurement Accuracy and Stability

Input impedance is ≥10MΩ, common mode rejection ≥60dB, and system noise ≤50µVp-p. Gain accuracy is within ±10% at all gain settings, and gain stability over 24 hours is within 3%. Timing accuracy ensures the overall error does not exceed 30 seconds during the recording period.

Benefits and Practical Use

This Holter monitor is designed to support clinical workflow, from patient setup to report generation, with features that save time and enhance diagnostic accuracy.

Comprehensive Report Options

One-key print functionality allows convenient and fast printing of reports. The software includes analysis functions for 5-minute, 1-hour, and whole heart rate variability, as well as additional modules such as T-Wave alternation, QTD, VCG, VLP, and TVCG, which provide more valuable insights for analysis.

Flexible Analysis Modes

Physicians can use whole or segmented auto/manual analysis for atrial fibrillation, ensuring more accurate results. The fast review function allows single-lead or full-lead ECG review in any time bucket, enabling detailed examination of specific periods.

Portability and Ease of Use

The small size and battery operation make it suitable for home or outpatient use, while the included carrying bag provides protection during transport. The device comes with all necessary accessories for initial setup, including electrodes, lead cable, and user manual.
